2025  Horizon  83" X 14' GVWR 14K  - 08788

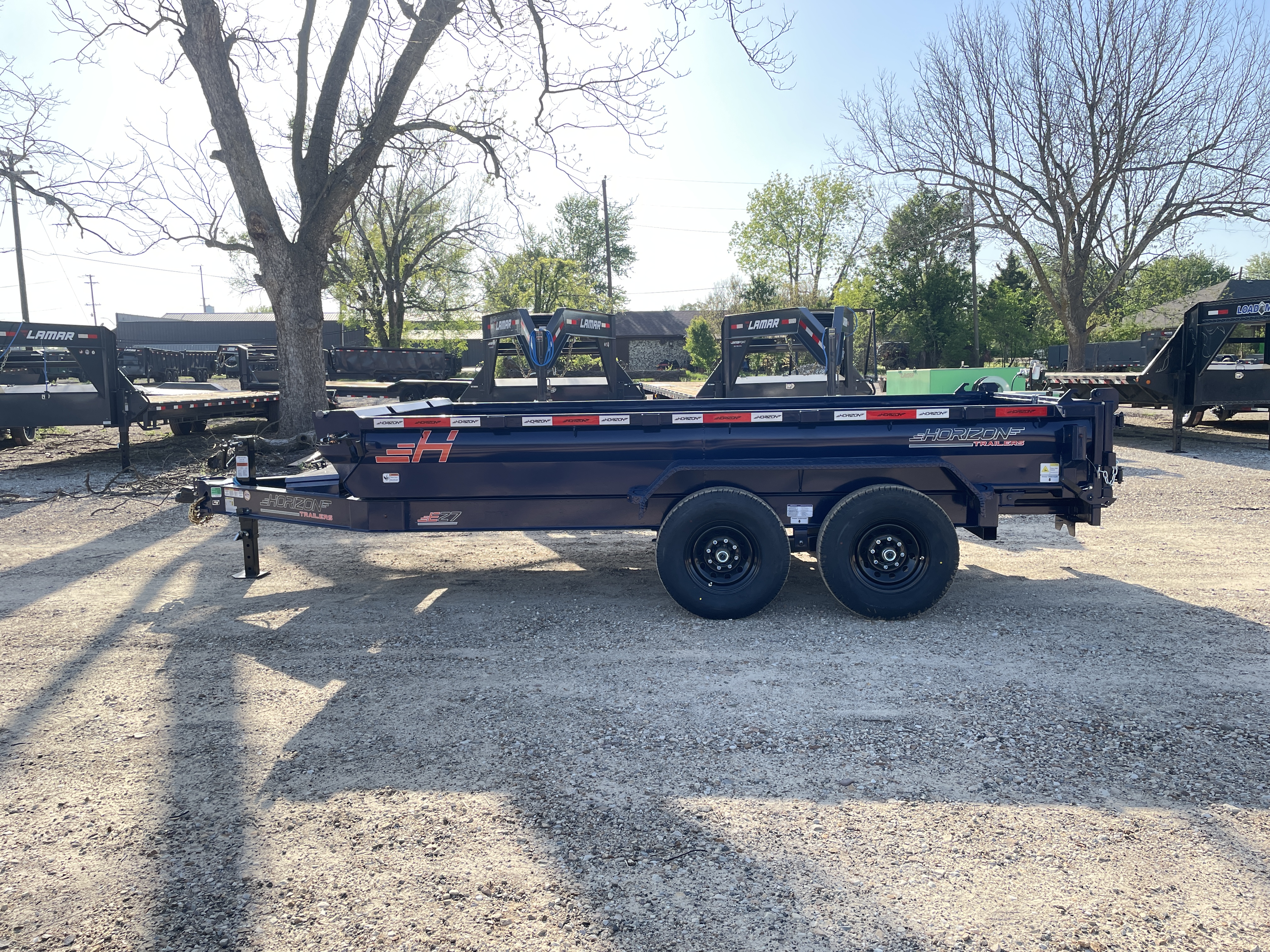

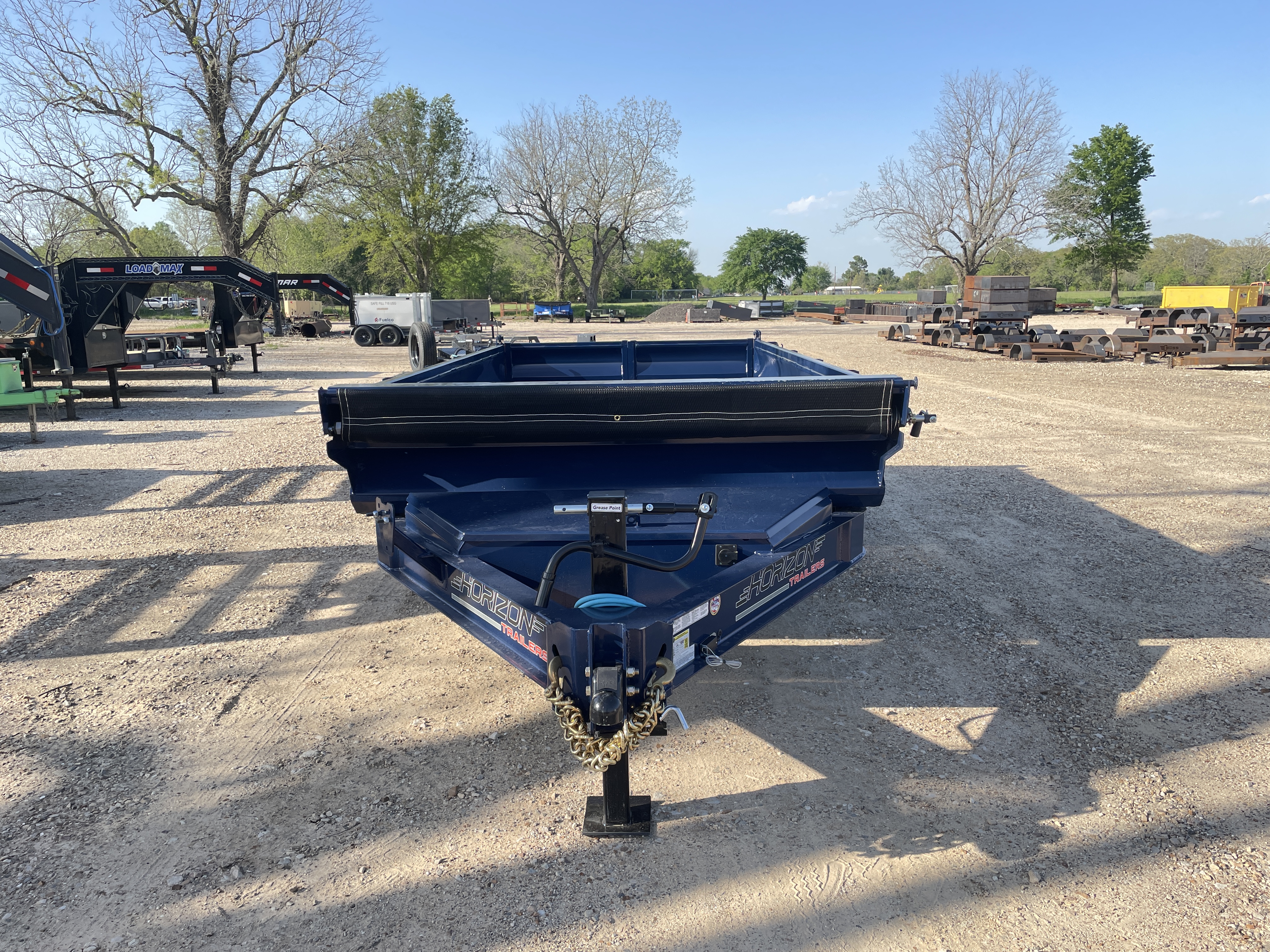

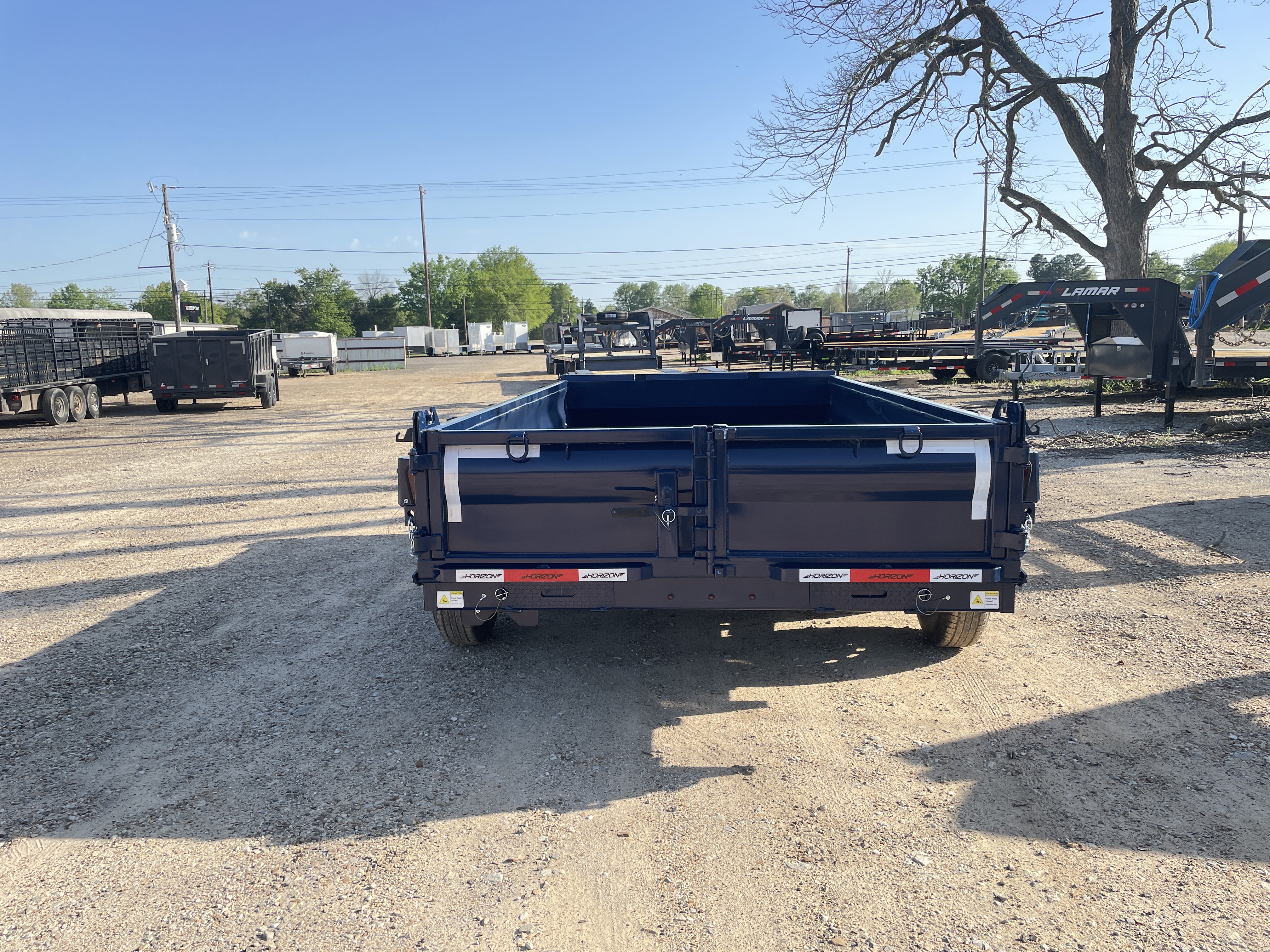

2025 Horizon Trailers 83" X 14' GVWR 14K Dump Trailer
Frame: 8" I-Beam (13 lbs/ft)
Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
Adjustable Demco EZ Latch 2-5/16" BP Coupler (21,000 lbs)
1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
Weld On Spare Tire Mount
Tongue: 8" I-Beam (13 lbs/ft)
9ga. Steel Bed
Bed Frame: 2" x 4" x 11ga. Tubing
Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
4 D-Rings Welded Inside Box
Sides: 19" High, 12ga Rounded Steel
3 Way Door - Spreader Gate
Ramp Pockets w/ 6' 4" Long Slide In 3" Channel Ramps
(4,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
Manual Tarp Kit
5" x 16" Single Push Cylinder (15,000 lbs)
2 Button Hydraulic - Power Up / Power Down
ST235/80R16 10 Ply Tires Single (3,520 lbs)
16" Black Mod Wheels
2 - 7k Lippert Electric Brake EZ Lube Spring Axles
Spring
1 - Interstate 27 Deep Cycle Battery
DOT Approved Tecniq LED Lights
6 Stage Powdercoat Navy Blue
3H7BD1423SR008788
