2025  Horizon  102" X 28' GVWR GVWR 22K TILT  - 09374

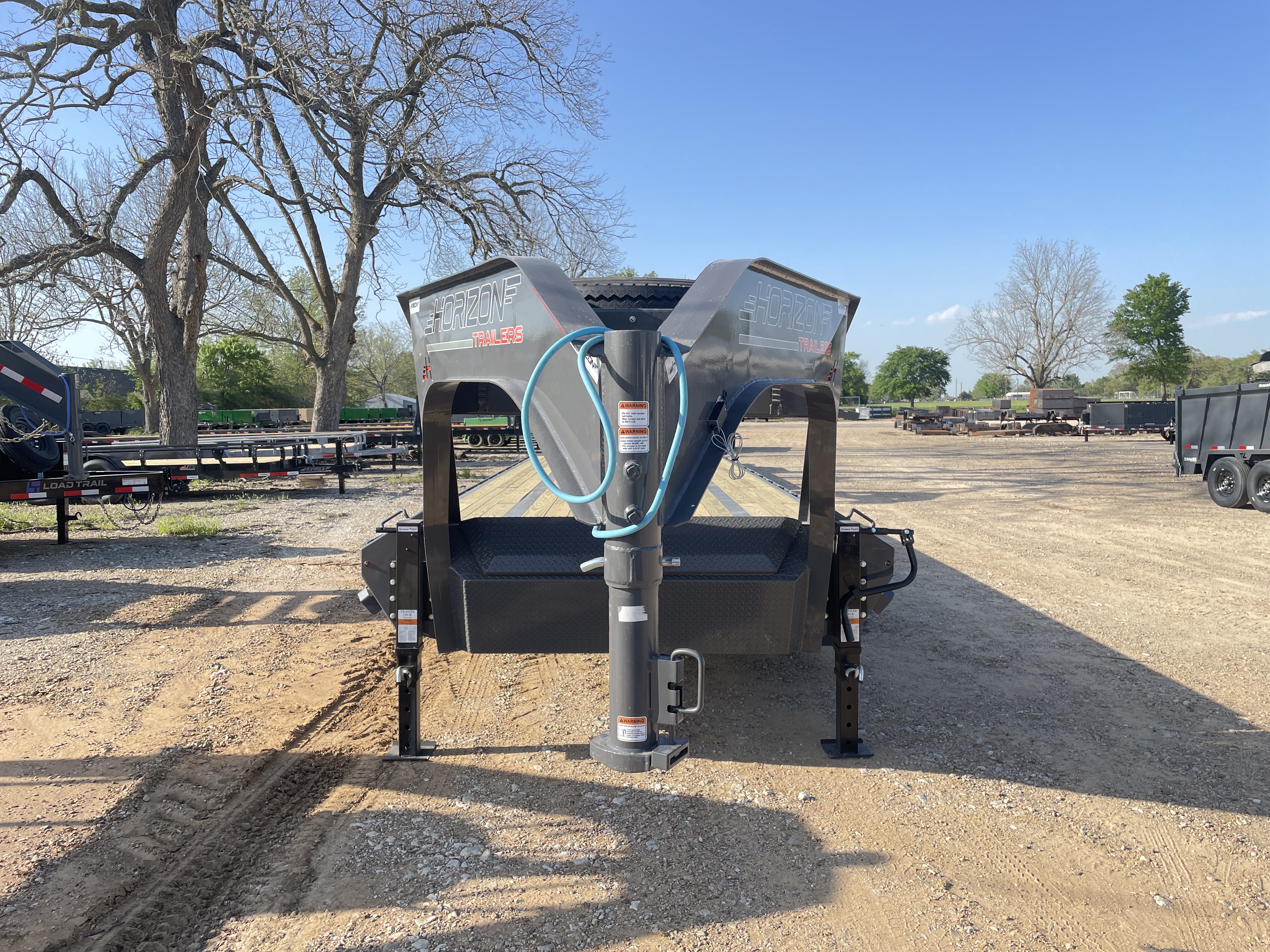

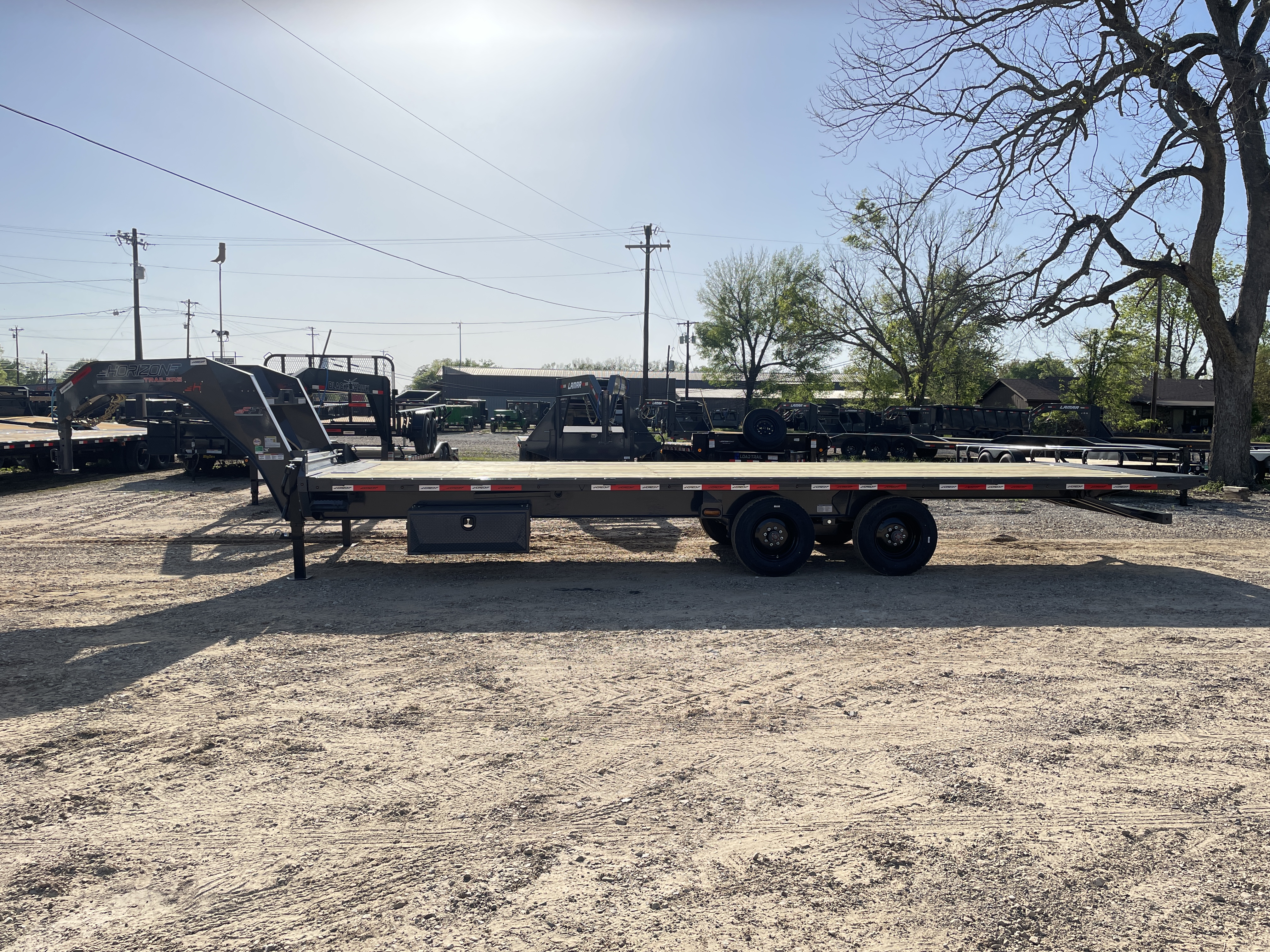

2025 HORIZON 28' x 102" GN FULL TILT FLATDECK TRAILER
Model FFT
Neck: 12" Engineered Steel I-Beam
Mega Lockable Toolbox
Adjustable 2-5/16" Gn Coupler (30,000 lbs)
2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
Weld On Spare Tire Mount
Storage Box
Frame: 12" I-Beam (14 lbs/ft)
Slide In Side Step On Both Sides
Lockable Toolbox (Houses Batteries And Pump)
Deck Height 36"
Pine Lumber Floor
2" x 5" x 11ga. Tubing Bed Frame
Crossmembers: 3" Channel (3.50 lbs/ft) 16" Spacing
1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
Winch Plate On Deck
2 Button Hydraulic - Power Up / Power Down
14' Control Cable
Tuff Wireless 2 Button Remote
Hoist w/ 6" x 21" Single Push Cylinder (20,000 lbs)
Lift Capacity: 20,000 lbs When Weight Distributed Across Length Of Deck
DOT Approved Tecniq LED Lights
6 Stage Powdercoat
2 - 10k Lippert Electric Brake S/Single Oil Bath Spring Axles
**(12" I-Beam (19 LBS/FT) Frame Upgrade / 17.5"-18 PLY Tires Included)**
10K AXLE SPARE TIRE
ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)
3H7GF2823SR009374
